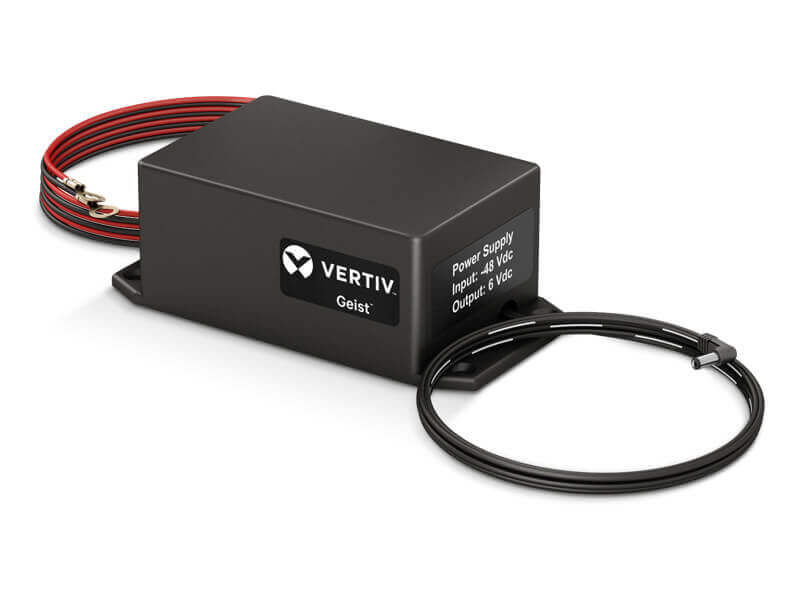

-48V DC Power Supply Vertiv™ Geist™ Environmental Accessory
-48VDC Power Supply for use with any Watchdog Environmental Monitor.
1400 Series Cable Caps
These neoprene or TPR caps seal off open cable ends. Caps with air valves retain a nominal air pressure of five to fifteen pounds. The adjustable stainless steel band clamps enable caps to be used effectively on cable .250 inches (6.35mm) to .500 inches (12.70mm) smaller than the cap’s inside diameter. All caps are 4.0 inches (101.60mm) long.
19″ Installation
These fan units are suitable for vertical ventilation of modules in 19″ area. Support rails are recommended for mounting. For fan units with 6 fans, support rails are required (e.g. support rails with adjustable depth).
For more details please see Pages 91-92 in our IT Special Catalogue.
19″ Vertical Extrusions
With mounting holes or T-Slot for mounting 19″ rack components.
For more details please see Page 40 in our IT Special Catalogue.

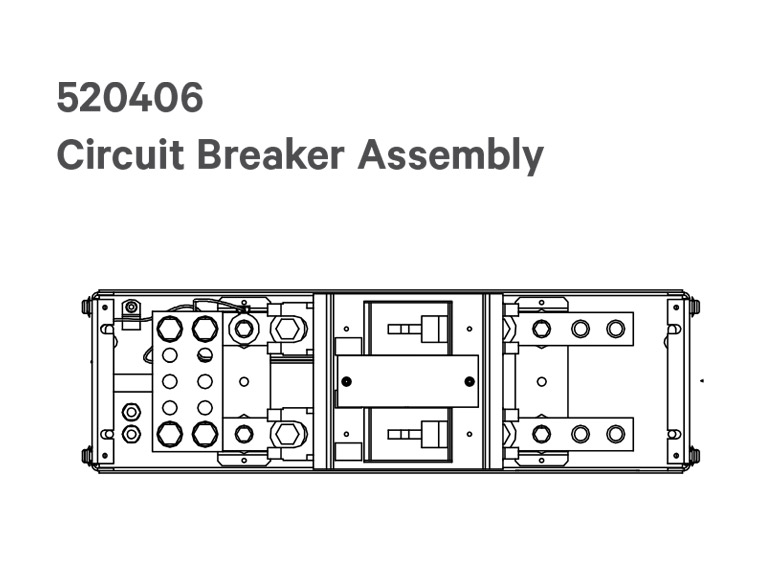

520406
Accepts up to (2) separately ordered GJ-type circuit breakers, as well as a third circuit breaker if an accessory circuit breaker mounting kit is ordered and installed. This assembly is designed for wall mounting. Furnished brackets permit mounting in either a 19″ or 23″ relay rack.
545277
Accepts up to (20) bullet nose-type circuit breakers or TPS/TLS type fuses in bullet nose fuse holders. Designed for mounting on a wall or in a 23″ relay rack. Maximum
current rating is 600 amperes. Panel is UL Listed for use in DC power distribution centers for communications equipment.
545700
Accepts up to (20) separately ordered GMT fuses. May be connected for single load distribution or dual (A and B side) load distribution. Designed for mounting in a 19″ or 23″ relay rack. Includes an external fuse alarm circuit card which provides resistive battery and Form-C relay contacts for external alarm circuits.

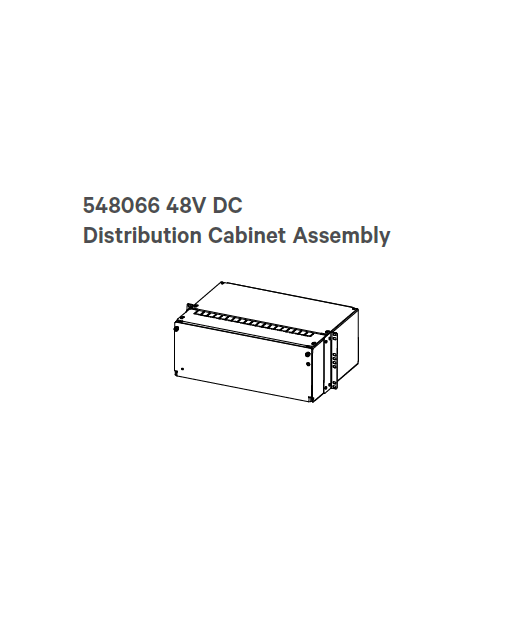

548066
Accepts up to (19) TPS/TLS-type fuses (3 to 100A) or bullet nose type circuit breakers (1 to 250A). Designed for mounting in a 19″ relay rack.

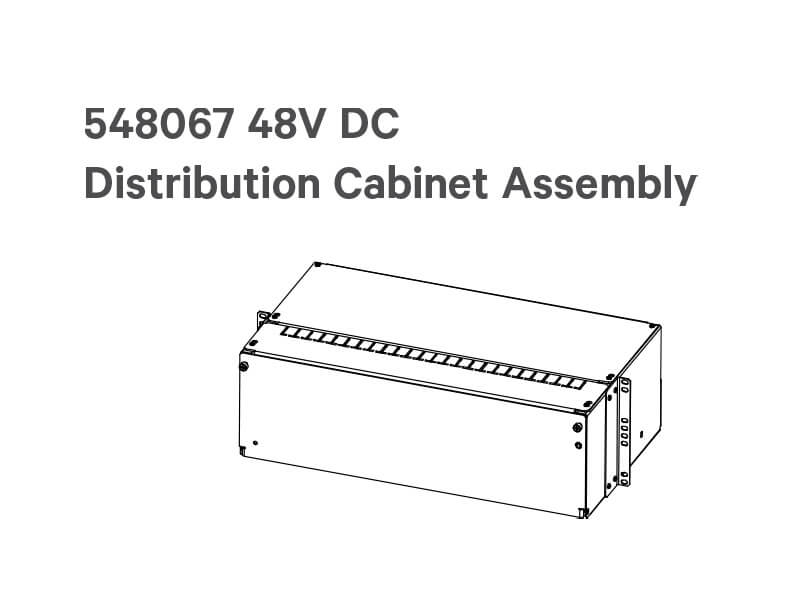

548067
Accepts up to (24) TPS/TLS-type fuses (3 to 100A) or bullet nose type circuit breakers (1 to 250A). Designed for mounting in a 23″ relay rack.

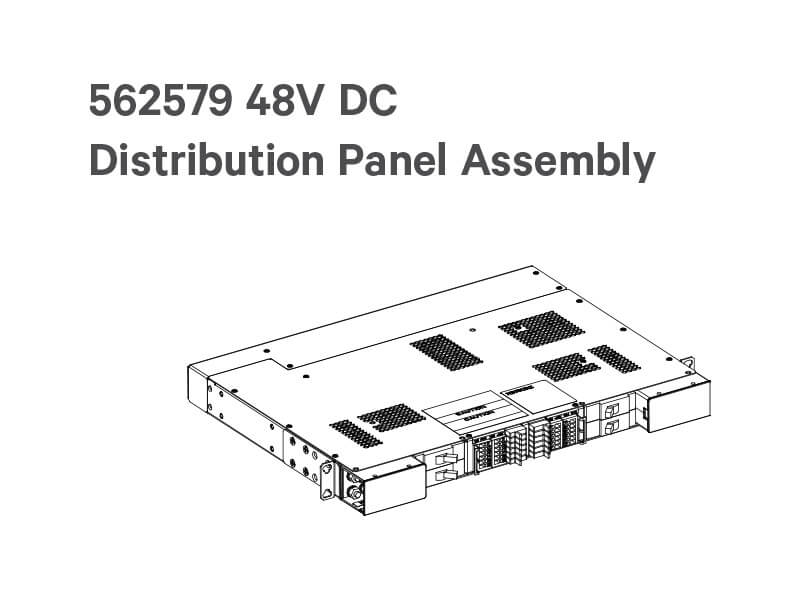

562579
Accepts up to (12) GMT fuse load positions and (4) bullet nose-type circuit breaker load positions. Designed for mounting in a 19″ relay rack. UL Recognized for use in DC power distribution centers for communications equipment. Includes an external fuse alarm circuit card which provides resistive battery and Form-C relay contacts to external CBA/FA alarms. Relay contacts rated for 30 VDC @ 2 A.
563171
Accepts up to (36) GMT fuse load positions. Designed for mounting in a 19″ relay rack. UL recognized for use in DC power distribution centers for communications equipment. Includes an external fuse alarm circuit card which provides resistive battery and Form-C relay contacts to external CBA/FA alarms. Relay contacts rated for 30 VDC @ 2 A.

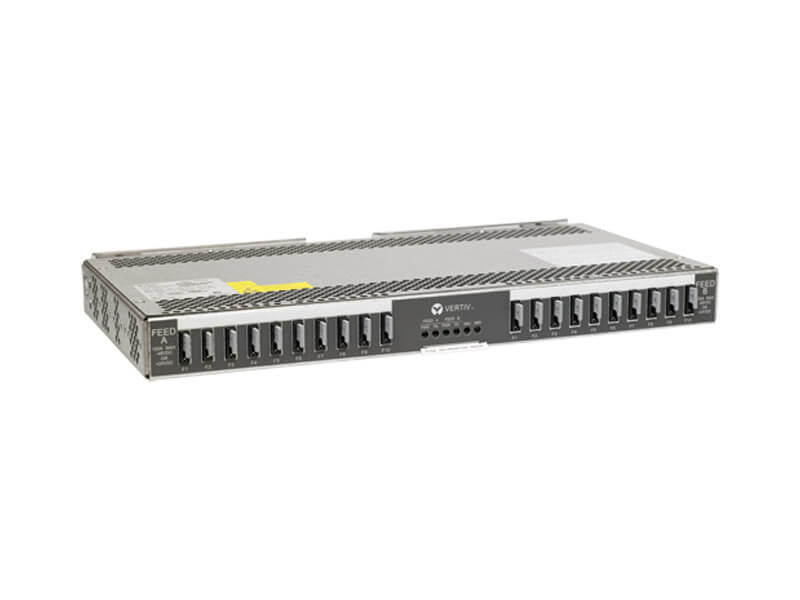

563317
19″ panel accepts up to (20) fuse load positions. 19″ and 23″ relay rack mounting options available. Offers dual (Side A and Side B) load distribution.

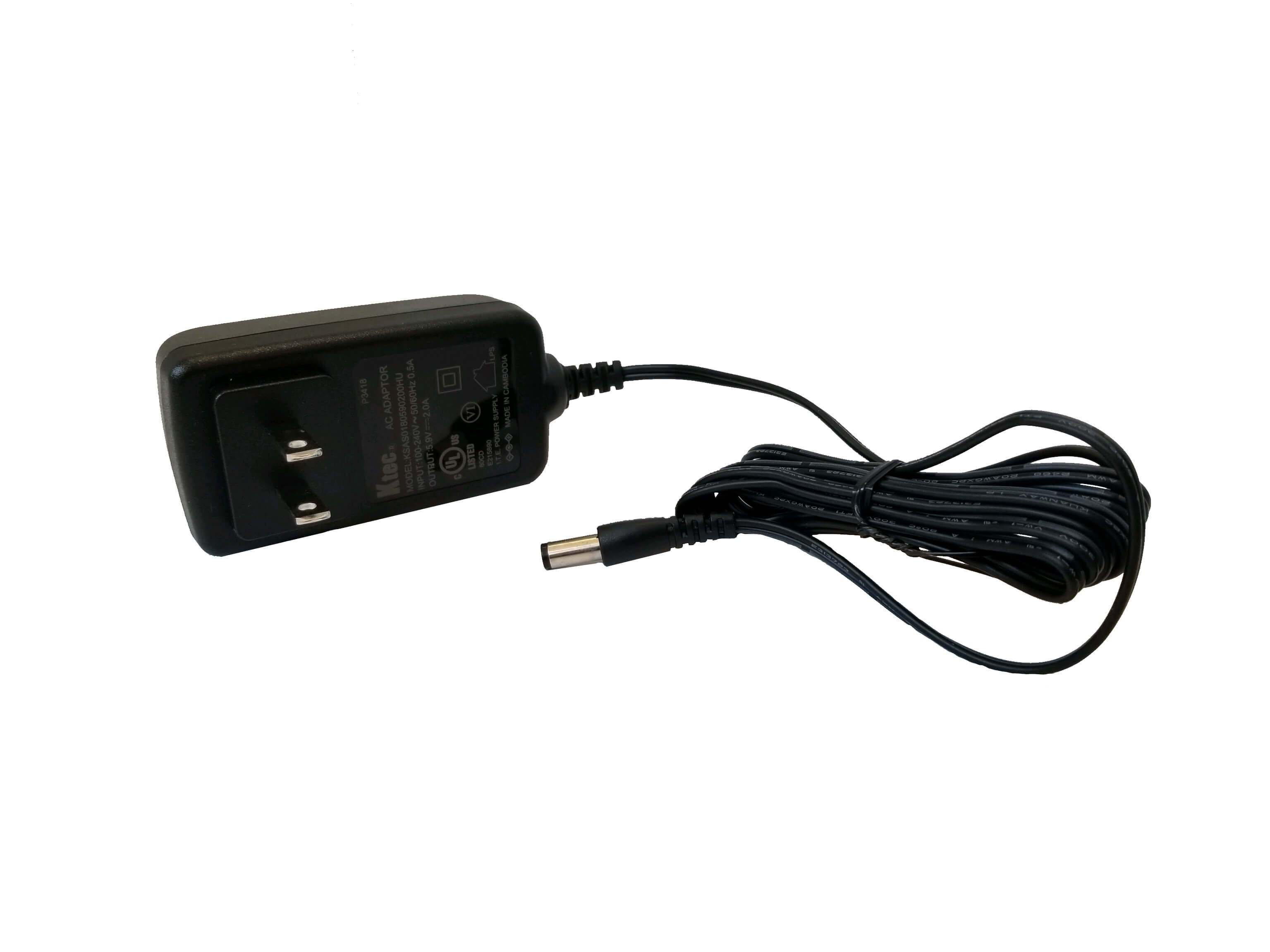

6V DC Power Supply 8204 Vertiv™ Geist™ Environmental Accessory
Power Supply 6V DC for use with any Watchdog Environmental Monitor

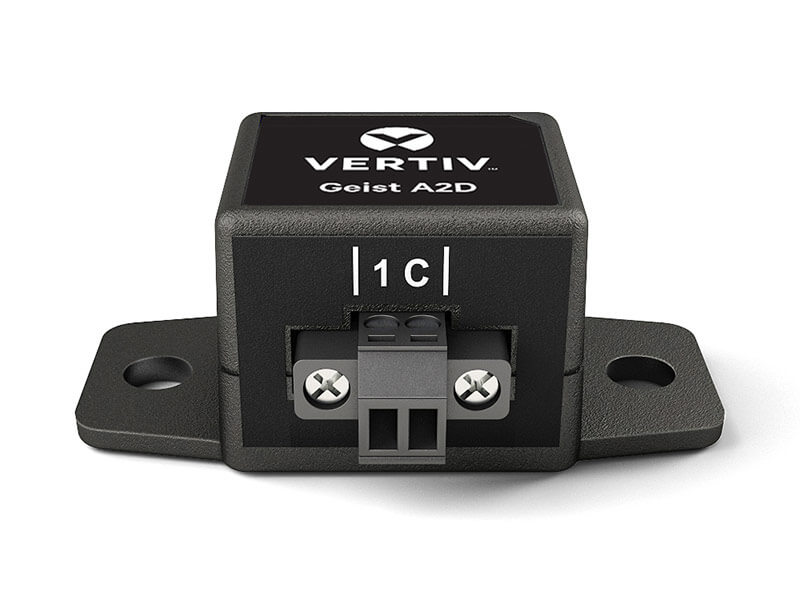

A2D-10 Vertiv™ Geist™ Environmental Sensor
Analog to digital converter provides the ability to connect a dry contact, 0-10V, or 4-20mA sensor to a Plug-n-Play sensor port. Includes a 10ft / 3m cable. Compatible with Vertiv™ Geist™ rPDUs and Environmental Monitors.
A2D-50 Vertiv™ Geist™ Environmental Sensor
Analog to digital converter provides the ability to connect a dry contact, 0-10V, or 4-20mA sensor to a Plug-n-Play sensor port. Includes a 50ft / 15.2m cable. Compatible with Vertiv™ Geist™ rPDUs and Environmental Monitors.
