High Heat Density

High Heat Density

High heat density system delivers data center cooling for more than 30 kW per rack. Liebert XD offers floor-mount, rack-mount and ceiling-mount configurations. Utilizes pumped refrigerant, which is ideal for use around electronic equipment. Enhances the hot aisle / cold aisle approach to cooling. High density solutions are configured in 45 ton (160 kW) building blocks with spot cooling modules that range in size from 2.5 to 8 ton (9 to 30 kW).

CDP Liebert XDO, XD Overhead Cooling Module, 17.2-20kW

Liebert XDO, XD Overhead Cooling Module, 17.2-20kW

Overhead cooling module that mounts directly above the cold aisle, requiring no floorspace. It draws in hot air from the hot aisle, then discharges cool air into the cold aisle where the equipment air inlets are located.

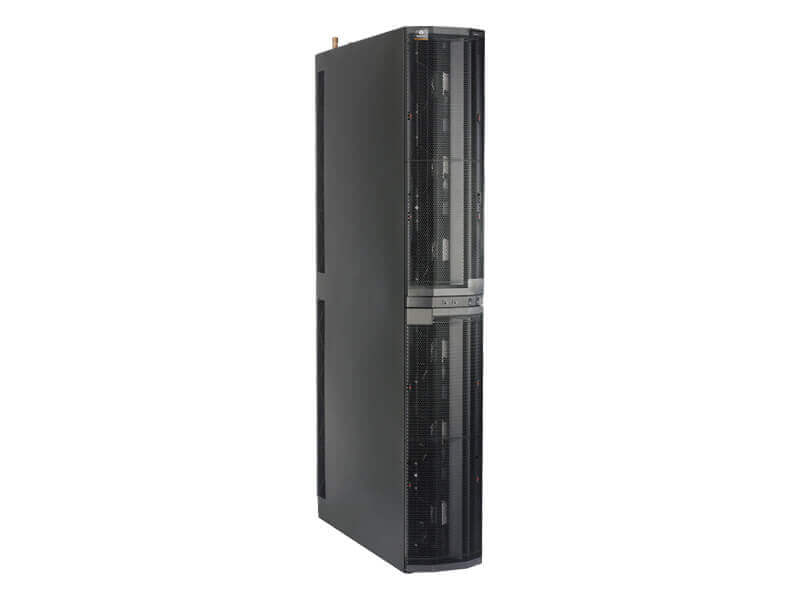

CDP Liebert XDH, 22-30kW​​

Liebert XDH, 22-30kW​​

In-the-row cooling module placed directly in line with the rack enclosures, and requires very little floorspace. Air from the hot aisle is drawn in through the rear of the unit, cooled, and then discharged horizontally through the front of the unit into the cold aisle.

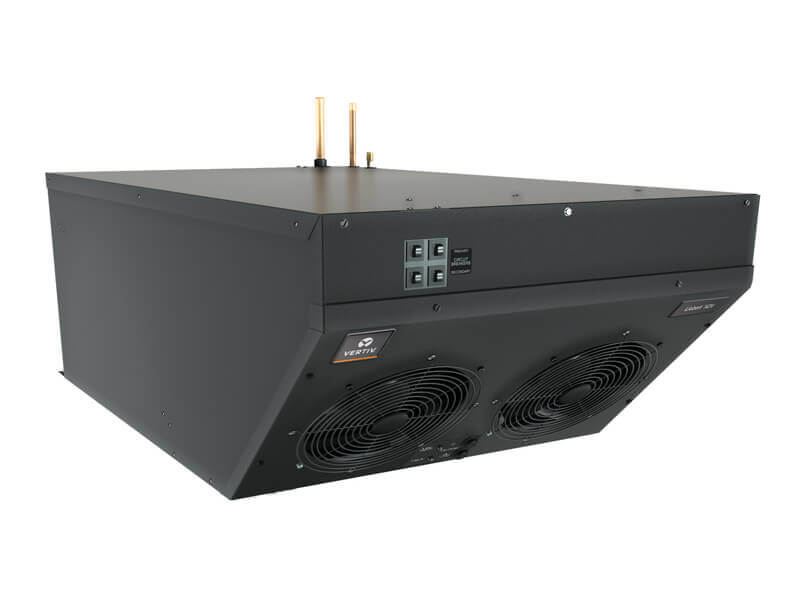

CDP Liebert XDV, XD Racktop Cooling Module, 8.8-10kW

Liebert XDV, XD Racktop Cooling Module, 8.8-10kW

Rack cooling module that mounts vertically on or above the IT rack enclosure, requiring no floorspace. It draws hot air from inside the cabinet or from the hot aisle. It then cools the air and discharges it down to the cold aisle.

CDP Liebert DCP Water-Based Pumping Unit, 200kW

Liebert DCP Water-Based Pumping Unit, 200kW

The Liebert DCP houses the isolating heat exchanger between the Liebert DCD and building chilled water. It circulates the chilled water to the cooling modules at a temperature always above the actual dew point to prevent condensation.

CDP Liebert XD Refrigerant-Based Cooling Modules

Liebert XD Refrigerant-Based Cooling Modules

Liebert XD refrigerant-based cooling modules deliver high-density cooling with highly flexible configurations for floor-mount, rack-mount and ceiling-mount applications.

CDP Liebert XDA, Air Flow Enhancer, 1000CFM

Liebert XDA, Air Flow Enhancer, 1000CFM

The Liebert XDA rack fan unit optimizes data center cooling by increasing air flow through densely populated enclosures, past congested cabling; removing hot spots within the enclosure that can threaten the uptime of your critical systems.

CDP Liebert XDC, XD Chiller and Pumping Unit, 160kW

Liebert XDC, XD Chiller and Pumping Unit, 160kW

Coolant chiller unit available in an air cooled configuration with remote condenser. In conjunction with the Liebert XD Cooling Modules, the Liebert XDC system can cool more than 30kW per rack.

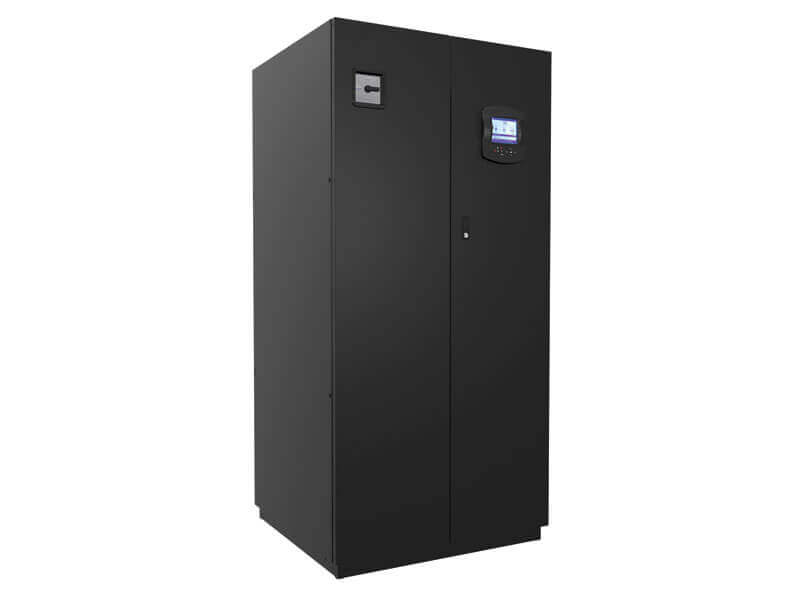

CDP Liebert XDP Pumping Unit, 130-160kW

Liebert XDP Pumping Unit, 130-160kW

Liebert XDP is a system-matched pumping unit, designed to support to Liebert XDO, Liebert XDV, Liebert XDH, and Liebert XD CoolFrame spot/zone cooling units. It is the isolating interface between the building chilled water system and the pumped refrigerant circuit. In conjunction with the Liebert XD Cooling Modules, the Liebert XDP system can cool more than 30kW per rack.
